0142伺服控制二位二通PVC耐腐蚀隔膜阀无流量时,带有伺服隔膜的先导式直通阀会关闭。为了*打开和关闭阀门,所需的差压不能低于 0.5 bar。驱动装置与介质室通过, burkert 00041394宝德一个隔膜隔开。
burkert 00041394宝德
burkert大口径隔膜电磁阀0142。上海囯与自动化设备有限公司主营德国进口品牌burkert,销售该品牌旗下所有产品:电磁阀、隔膜阀、比例阀、控制器、气动阀、传感器、塑料气缸、控制头等流体控制系统急其它辅件

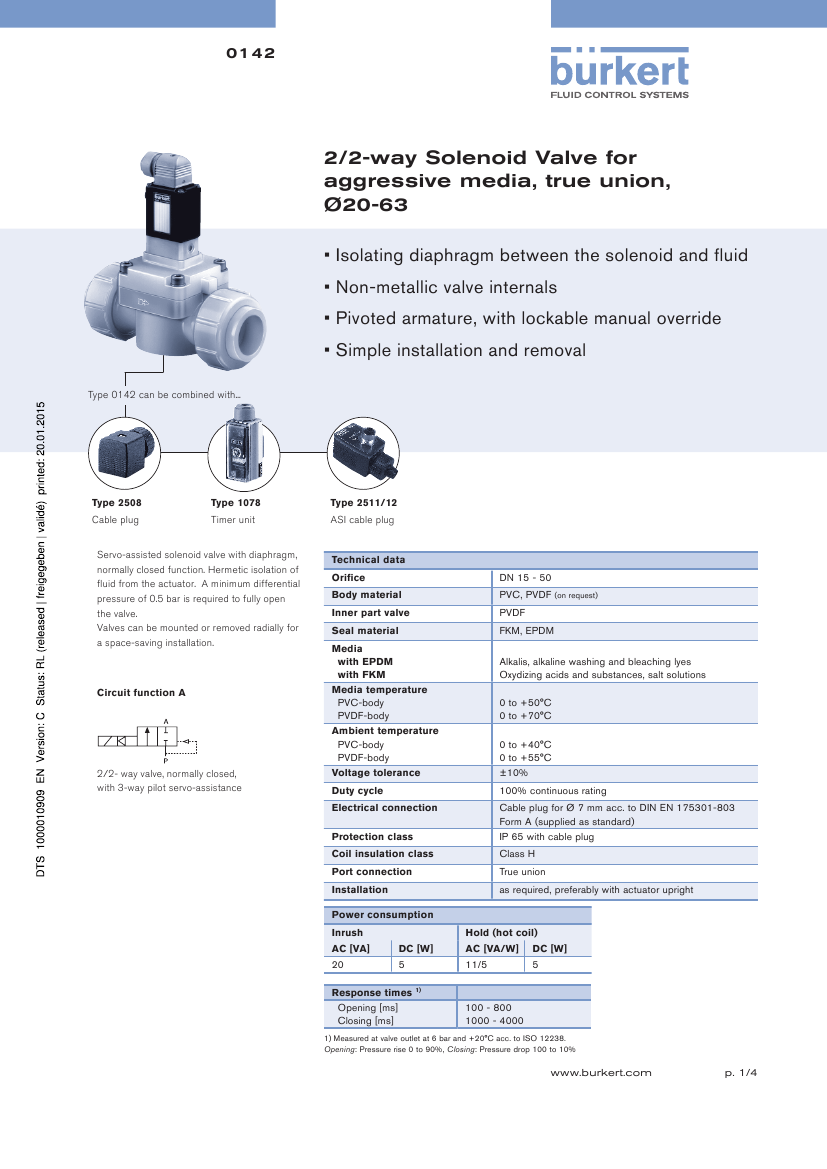

burkert大口径隔膜电磁阀0142技术参数:
Orifice DN 15 - 50
Body material PVC, PVDF (on request)
Inner part valve PVDF
Seal material FKM, EPDM
介质:
with EPDM
with FKM
Alkalis, alkaline washing and bleaching lyes Oxydizing acids and substances, salt solutions
介质温度:
PVC-body
PVDF-body
32°F to 122°F (0°C to +50°C)
32°F to 158°F (0°C to +70°C)
Ambient temperature
PVC-body
PVDF-body
32°F to 104°F (0°C to +40°C)
32°F to 131°F (0°C to +55°C)
Voltage tolerance ±10%
Duty cycle * continuous rating
Electrical connection Cable plug for Ø 7 mm acc. to DIN EN 175301-803
Form A (supplied as standard)
Protection class IP 65 with cable plug
Coil insulation class Class H
Port connection True union
Installation as required, preferably with actuator upright
burkert 00041394宝德 尺寸图:
